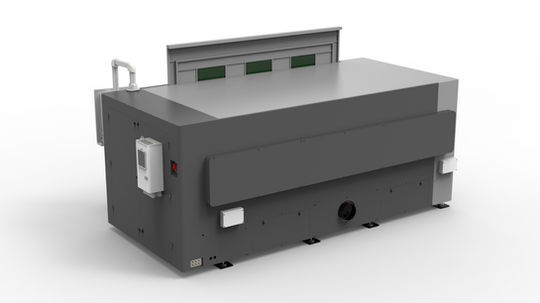

AP3015 SL Fiber Laser Cutting System
The AP3015 SL is a compact, fully enclosed fiber laser cutting system engineered for fabricators who require high-quality cutting performance in a space-efficient design. By integrating the laser source, motion system, and material handling into a single machine platform, the AP3015 SL minimizes floor space requirements while delivering the speed, precision, and reliability expected from a modern industrial fiber laser.
Designed for fast installation and straightforward operation, the AP3015 SL allows manufacturers to begin producing parts quickly while maintaining a safe, clean, and productive work environment.
PRODUCT COMPLIANCE
Meets applicable U.S. federal laser product requirements for safety, certification, and labeling.
WARRANTY AND SUPPORT
Apache machines are backed by two-year warranties, with three-year coverage on select models.
U.S. ASSEMBLY ON SELECT MODELS
Select Apache models are assembled in the USA and backed by responsive support from our team.
RESPONSIVE TECHNICAL SUPPORT
Questions should not wait. Apache is committed to same-day response when customers need technical support.
Compact Machine Design
-
Designed for facilities where floor space is at a premium without sacrificing cutting performance.
-
Fully enclosed Class 1 laser safety enclosure contains infrared laser radiation while improving operator safety and reducing shop noise.
-
Integrated machine design simplifies installation and reduces commissioning time compared to conventional laser systems with external laser cabinets.
-
Heavy-duty welded steel frame that is heat treated and stress relieved to provide exceptional rigidity and long-term cutting accuracy.
-
Precision linear guideway system with centralized automatic lubrication for smooth machine motion, reduced wear, and extended component life.
Material Handling
Accommodates 5 ft. × 10 ft. sheet material.
-
Heavy-duty roll-out material drawer allows convenient loading and unloading using either a forklift or overhead crane.
-
Material drawer is rated for 1,322 lb (600 kg) capacity, providing ample support for heavy steel plate and other production materials.
-
Soft-start extension and controlled closing mechanism provide smooth, ergonomic operation even when handling maximum-capacity material.
Laser System
-
Available with 3 kW, 4 kW, 6 kW, or 12 kW fiber laser power sources.
-
Intelligent Bochu closed-loop cutting head continuously monitors cutting conditions and lens temperature while communicating with the CNC controller to maintain optimum cutting performance and simplify maintenance.
-
Automatic capacitive height control with integrated edge detection provides accurate material sensing and consistent focal positioning throughout the cutting process.
-
Automatic collision protection detects cutting head impacts and initiates recovery procedures to help protect cutting head components and reduce production downtime.
-
Automatic assist-gas pressure regulation maintains programmed cutting gas pressure for consistent edge quality and reliable process control.
Motion & Drive System
-
High-performance Inovance AC servo motors and drives provide smooth, accurate motion on every machine axis. Optional Yaskawa servo systems are available.
-
Precision rack-and-pinion drive system delivers rapid positioning speeds while maintaining outstanding accuracy and repeatability.
-
High-speed EtherCAT motion control architecture provides ultra-fast communication between machine components for precise synchronization and responsive machine performance.
Operator Controls
-
Dual touchscreen operator interface provides convenient machine control.
-
User-friendly CNC control simplifies machine setup, program management, and production monitoring.
-
Advanced nesting and batch processing capabilities maximize material utilization and increase production efficiency.
Safety & Visibility
-
Integrated high-definition camera system provides continuous live monitoring of the cutting enclosure and cutting process.
Fume Extraction
-
Fully enclosed cutting chamber allows efficient capture of smoke and airborne particulate, improving filtration performance while reducing the volume of air required for extraction.
-
Intelligent multi-zone fume extraction concentrates airflow beneath the active cutting area to improve dust collection efficiency and reduce operating costs.
Maintenance & Connectivity
-
Programmable centralized automatic lubrication system reduces routine maintenance while extending the service life of critical motion components.
-
Climate-controlled electrical cabinet protects sensitive electronics from excessive temperatures and airborne contaminants for dependable long-term operation.
-
Integrated remote diagnostics and software support enable authorized technicians to troubleshoot, update, and optimize machine performance remotely, reducing service response time and maximizing equipment uptime.
Product details
Sheet Capacity
5 ft. × 10 ft.
Laser Power
3 kW, 4 kW, 6 kW, or 12 kW
Material Drawer Capacity
1,322 lb. (600 kg)
Cutting Head
Bochu closed-loop cutting head
Servo System
Inovance AC servo motors and drives
Motion Control
EtherCAT
